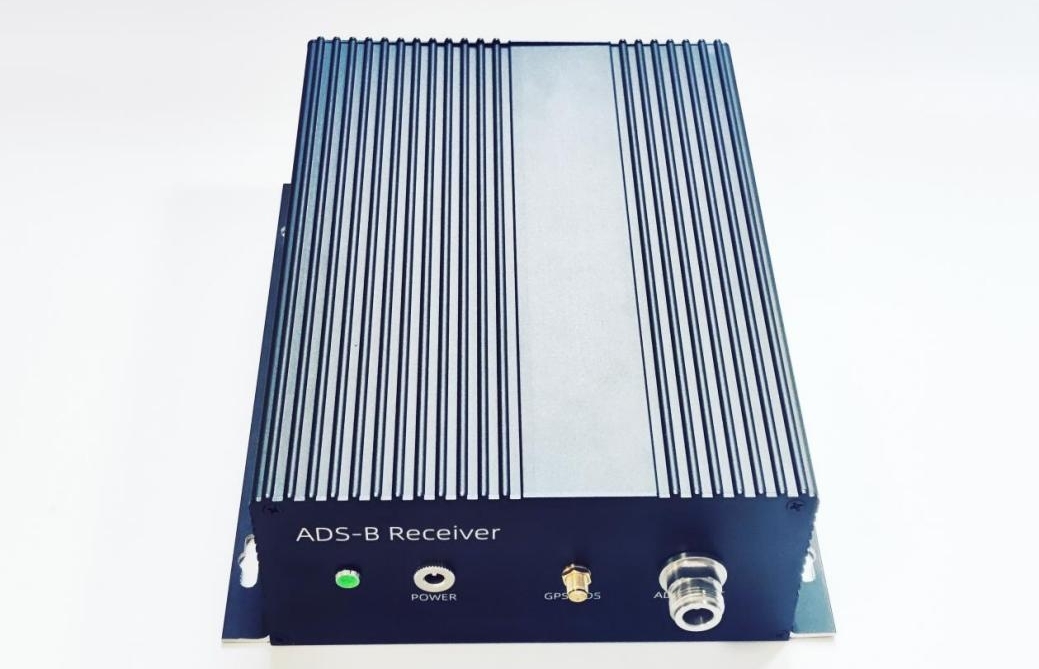

Introduction
|
|
ADSB-SS03 is a standard ADS-B ground receiver that complies with the RTCA DO260B/DO260C standards. Integrated with ADS-B signal processing module, the receiver can output raw ADS-B messages and decoded CSV plain-text data via USB or serial port. ADSB-SS03 supports simultaneous output of both raw ADS-B messages DF17/DF18 and decoded CSV plain-text data. The serial port output protocol supports RS232, RS422, and RS485(Serial interface supports RS232 protocol by default; optional RS485 or RS422 configuration available. Please specify the required configuration before shipment).
This ADS-B receiver supports both BDS and GPS, providing ADS-B data reception, processing, and display services. It is applicable in fields such as civil aviation flight tracking, airport management, general aviation aircrafts surveillance, Detect-and-Avoid (DAA) subsystem, ADS-B IN capability for UAS situational awareness, radar calibration, academic research and education.
|
|

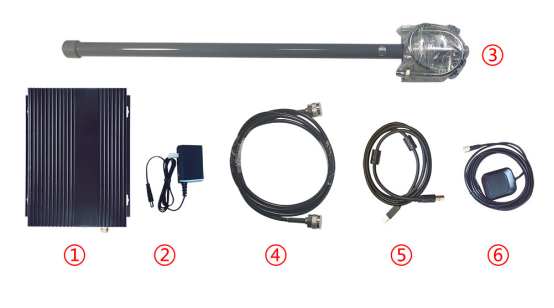

Package List：
|
No.
|
Name
|
Quantity
|
Remarks
|
|
1
|
ADSB-SS03
|
1 unit
|
Included
|
|
2
|
Power Cable
|
1 piece
|
Included
|
|
3
|
ADS-B Antenna and Bracket
|
1 set
|
Included
|
|
4
|
ADS-B Antenna Cable
|
1 piece (10 meters)
|
Included
|
|
5
|
Type-B USB Data Cable
|
1 piece
|
Included
|
|
6
|
GPS/BDS Antenna
|
1 set (includes 3-meter cable)
|
Included
|
|
Specifications
|
|
No.
|
Specifications
|
|
1
|
Power Supply
|
DC12V 2A
|
|
2
|
Power Consumption
|
3.6W
|
|
3
|
Receiving Frequency
|
1090MHz
|
|
4
|
Sensitivity
|
≤ -95dBm
|
|
5
|
Dynamic Range
|
≤ 40 dB
|
|
6
|
Update Rate:
|
≥ 1 Hz
|
|
7
|
Target Capacity
|
> 600 targets
|
|
8
|
Processing Capacity
|
> 3000 messages/s
|
|
9
|
Receiving Range
|
> 350km(no interference, unobstructed)
|
|
10
|
Data Format
|
ADS-B raw message, CSV plain-text
|
|
11
|
Data Interface
|
Type-B USB and DB9 female (both interfaces can output data simultaneously)
|
|
12
|
Serial Port Protocol
|
RS232, RS422, RS485 (configuration needs to be selected before factory shipment)
|
|
13
|
ADS-B Antenna Interface
|
N female
|
|
14
|
GPS/BDS Antenna Interface
|
SMA female
|
|
15
|
Dimensions
|
220*160*72mm (main body)
|
|
16
|
Weight
|
1250g
|
|
17
|
Operating Temperature
|
-10℃ ~ +55℃
|
|
18
|
Storage Temperature
|
-15℃ ~ +60℃
|
|
19
|
Storage Humidity
|
10% ~ 80%
|
|
Interface Description
|
|
|
|
Interface：
|
No.
|
Interface Name
|
Function
|
|
1
|
POWER
|
Power supply interface for main unit, DC 12V 2A
|
|
2
|
GPS/BDS
|
GPS/BDSantenna interface, SMA female
|
|
3
|

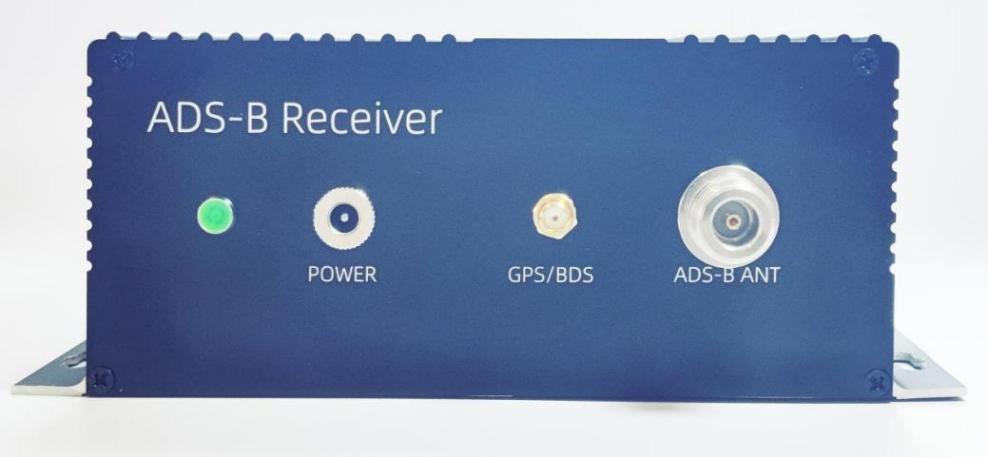

ADS-B ANT
|
ADS-B antenna interface, N female
|
|
4
|
USB
|
Data interface 1, Type-B connector, combined output for raw messages and decoded plaintext, displays as SERIAL-A, SERIAL-B when connected to a computer
|
|
5
|

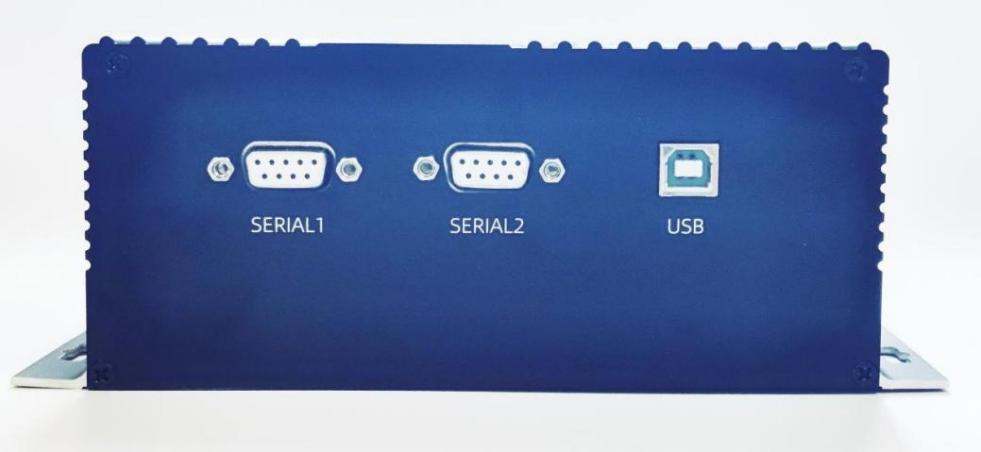

SERIAL1
|
Data interface 2, DB9 connector, raw message output, default protocol is RS232 (other protocols can be configured upon request)
|
|
6
|
SERIAL2
|
Data interface 3, DB9 connector, decoded plaintext output, default protocol is RS232 (other protocols can be configured upon request)
|
|
|
|
|
|
Key Features and Benefits
|
|
· Cost-effective;
· Supports simultaneous data output via USB and two serial ports (selectable from RS232, RS422, or RS485);
· One receiver can simultaneously deliver data to three client terminals;
· Supports output of decoded plain-text data;
· Compact and lightweight design for convenient portable use;
· Filter data within a range (optional).
|
Frequently Asked Questions
|
|
What is the difference between ADSB-SS03 and ADSB-SS01?
ADSB-SS03 is an upgraded version of ADSB-SS01. It features enhanced receiving sensitivity for better reception performance, provides more serial interface options, and supports onboard decoding of ADS-B messages. By comparison, ADSB-SS01 is designed to output raw ADS-B DF17/DF18 messages only.
Which data formats does ADSB-SS03 support?
ADSB-SS03 supports both raw ADS-B DF17/18 messages and decoded CSV ADS-B data.
Can ADSB-SS03 work with third-party software?
Yes. ADSB-SS03 is compatible with popular ADS-B software such as adsbScope and other software and applications. It can also be integrated into custom software through the serial communication interface.
|
