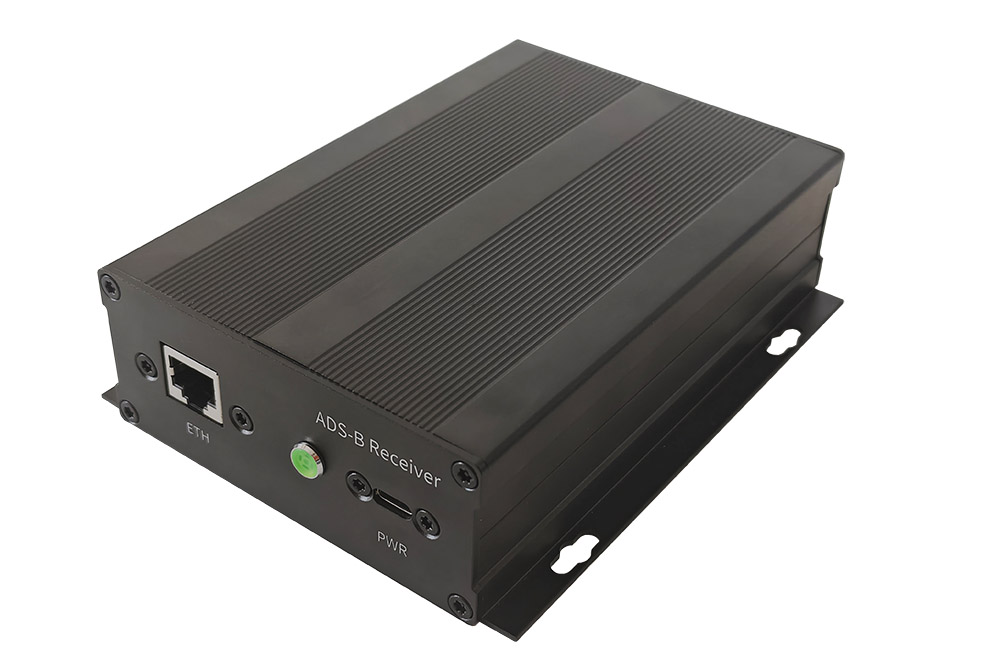

Introduction |
|---|
|
The ADSB-RE03 is an RTCA DO-260B/DO-260C compliant ADS-B ground receiver. Featuring an integrated ADS-B signal processing module, the device provides output of ADS-B raw messages over an RJ45 network interface.
It can be applied in civil aviation flight tracking, airport management, general aviation aircrafts surveillance, Detect-and-Avoid (DAA) subsystem, ADS-B IN capability for UAS situational awareness, radar calibration, academic research and education.
|
|

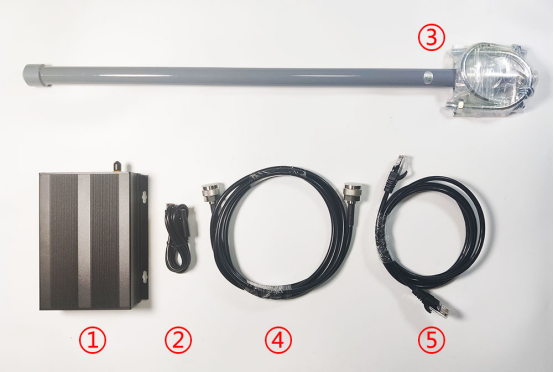

Package List：
|
Specifications |
|
|---|---|
|
Power Supply |
DC 5V 2A |
|
Power Consumption |
3 W |
|
Receiving Frequency |
1090MHz |
|
Sensitivity |
≤ -90dBm |
|
Receiving Range |
> 300km(no interference, unobstructed) |
|
Data Format |
ADS-B raw messages |
|
Data Interface |
RJ45 network port |
|
Network Connection |
Static IP or DHCP |
|
Network Protocol |
TCP |
|
ADS-B Antenna Interface |
SMA female |
|
Dimensions |
144*113*40mm(main body) |
|
Weight |
435g |
Interface Description |
|||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
  |
|||||||||||||
|

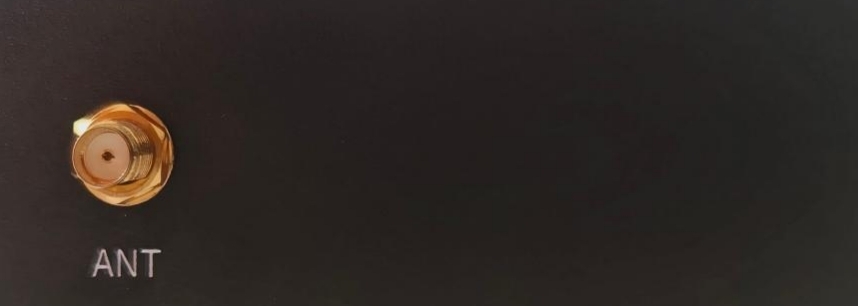

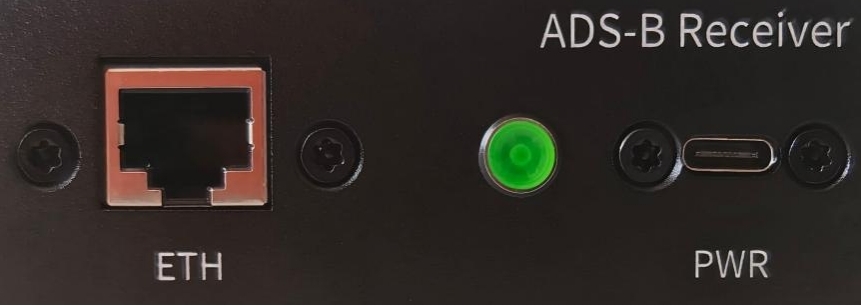

Interface：
|
|||||||||||||
Key Features and Benefits |
|---|
|
· Cost-effective; · Suitable for users capable of processing DF17/DF18 data, or for flight track display only; · Ethernet data output, usable with or without a network switch; · One receiver can simultaneously deliver data to multiple client terminals; · Compact and lightweight design, can be powered by a power bank for convenient portable use. |
Simplified Network ADS-B Receiver ADSB-RE03 User Manual
