Network AIS Receiver AIS-RN02

Pricing available upon request.

Introduction

AIS-RN02 is a portable and professional compact AIS receiver.The AIS-RN02 is a dual-channel AIS receiver integrated with a low-noise amplifier (LNA), featuring compact size, light weight, and low power consumption.

The device supports data output via Ethernet, with Ethernet communication protocols supporting both TCP and UDP. At the same time, the device also retains the capability of data transmission through the USB interface.

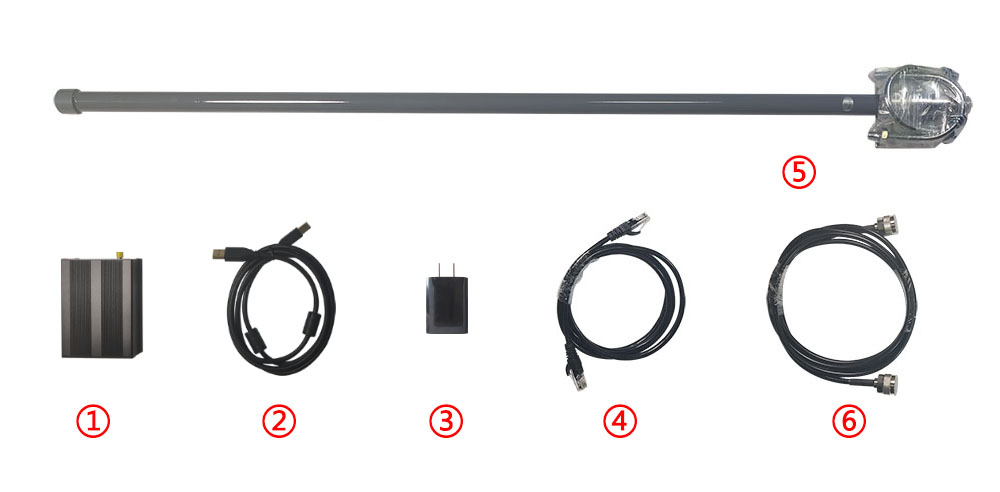

Package List：

No.

Name

Quantity

Remarks

1

AIS-RN02

1 unit

Standard

2

USB Cable (1.5m)

1 piece

Standard

3

Power Adapter

1 piece

Standard

4

Ethernet Cable (1.5m)

1 piece

Standard

5

AIS Antenna

1 piece

Standard

6

Antenna Cable (5m)

1 piece

Standard


AIS Receiver AIS-RN02



Features

· Compact size, light weight, and low power consumption; can be powered by a power bank for convenient portable use

· Outputs standard AIVDM message format

· Supports AIS message types 1-27

· Supports dual AIS channels

· Highly configurable for various application scenarios

· Optional output of AIS signal strength

· Optional reception of “Long-Range AIS” signals

· Supports TCP/UDP output, allowing one receiver to simultaneously deliver data to multiple client terminals

· Supports USB output, with a single USB cable used for both power supply and data transmission



Specifications


No.

Specifications

1

Power Supply

5V 2A (USB-powered)
Other power supply options can be customized according to requirements

2

Power Consumption

70mA

3

Receiving Frequency

161.975 MHz, 162.025 MHz
 156.775 MHz(Optional)
 156.825 MHz(Optional)

4

Data Format

AIVDM

5

AIS Channels

2

6

Sensitivity

-115dBm

7

Bandpass Filter Range

156.3~162.025MHz

8

Input Impedance

50Ω

9

Output interface 1

RJ45

10

Output interface 2

USB

11

Data Output Protocol

TCP / UDP (Default)

12

Dimensions

100x75.8x34.8 mm
(not including antenna connector)

13

Weight

190g

14

Antenna Connector

SMA



Interface

AIS Receiver AIS-RN02

AIS Receiver AIS-RN02

Interface：

No.

Interface Name

Function

1

USB

Power supply for the main unit, data transmission

2

PWR

Power indicator light for the main unit

3

DATA

Data transmission indicator light

4

ANT

Antenna interface

5

ETH

Data Transmission Interface, RJ45




Network AIS Receiver AIS-RN02 User Manual

Related Products

If you're looking for the serial port version, please check

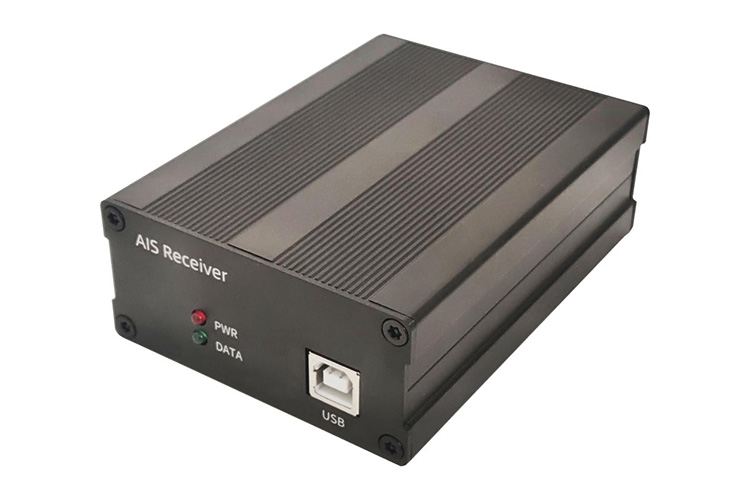

Serial Port AIS Receiver AIS-RUS01
Serial Port AIS Receiver AIS-RUS01
If you're looking for an AIS receiver that can output decoded AIS data, please check
Network AIS Receiver NWD-01 with WiFi+decode
Network AIS Receiver NWD-01 with WiFi+decode
