ADS-B Receiver Module ADSB-MU2

Pricing available upon request.

Introduction

ADSB-MU2 is a highly expandable and easy-to-integrate ADS-B signal receiving module. It features a high-sensitivity 1090 MHz RF receiving module, enabling signal reception, signal processing, and data decoding functions.

The module can output ADS-B raw messages via USB or serial port. The serial interface supports the RS232 protocol by default, while RS422 and RS485 serial output protocols can also be customized.



Package List：

No.

Item

Quantity

1

ADSB-MU2 Module

1

2

USB Cable

1








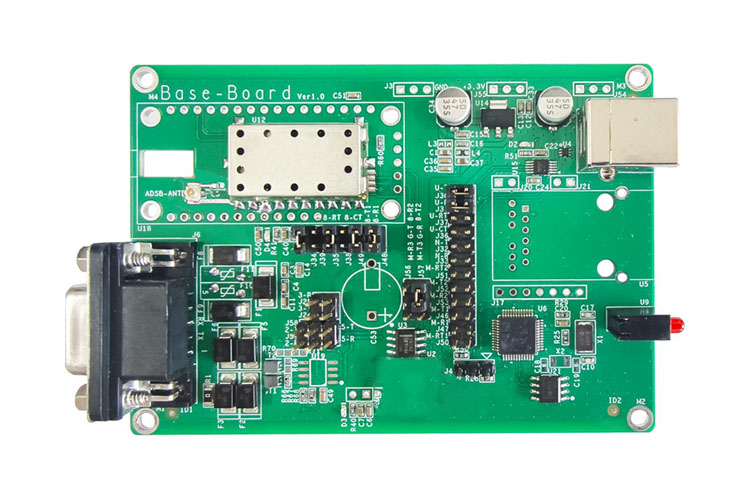

ADS-B Receiver Module ADSB-MU2



Features

· Easy to expand and suitable for embedded applications

· Outputs ADS-B raw DF messages

· Highly configurable to suit various application scenarios

· Supports multiple optional serial output protocols





Specifications

No.

Parameter

Specification

1

Power Supply

5V, 2A

2

Power Consumption

0.88 W

3

Receiving Frequency

1090 MHz

4

Sensitivity

≤ -90 dBm

5

Reception Range

> 250 km (no interference, no obstruction)

6

Target Capacity

> 300 targets

7

Processing Capability

> 1,500 messages/s

8

Data Format

ADS-B Raw DF Messages messages

9

Data Interfaces

Type-B USB and DB9 Female Connector

10

Serial Protocols
RS232 (Default)
RS485 / RS422 (Customizable)

11

ADS-B Antenna Connector

IPEX

12

Dimensions

100 × 71 × 35 mm (main unit)

13

Weight

40 g (main unit)

14

Operating Temperature

-20℃ ~ +60℃

15

Storage Temperature

-20℃ ~ +70℃

16

Storage Humidity

10% ~ 80%




Interface Description
ADS-B Receiver Module ADSB-MU2

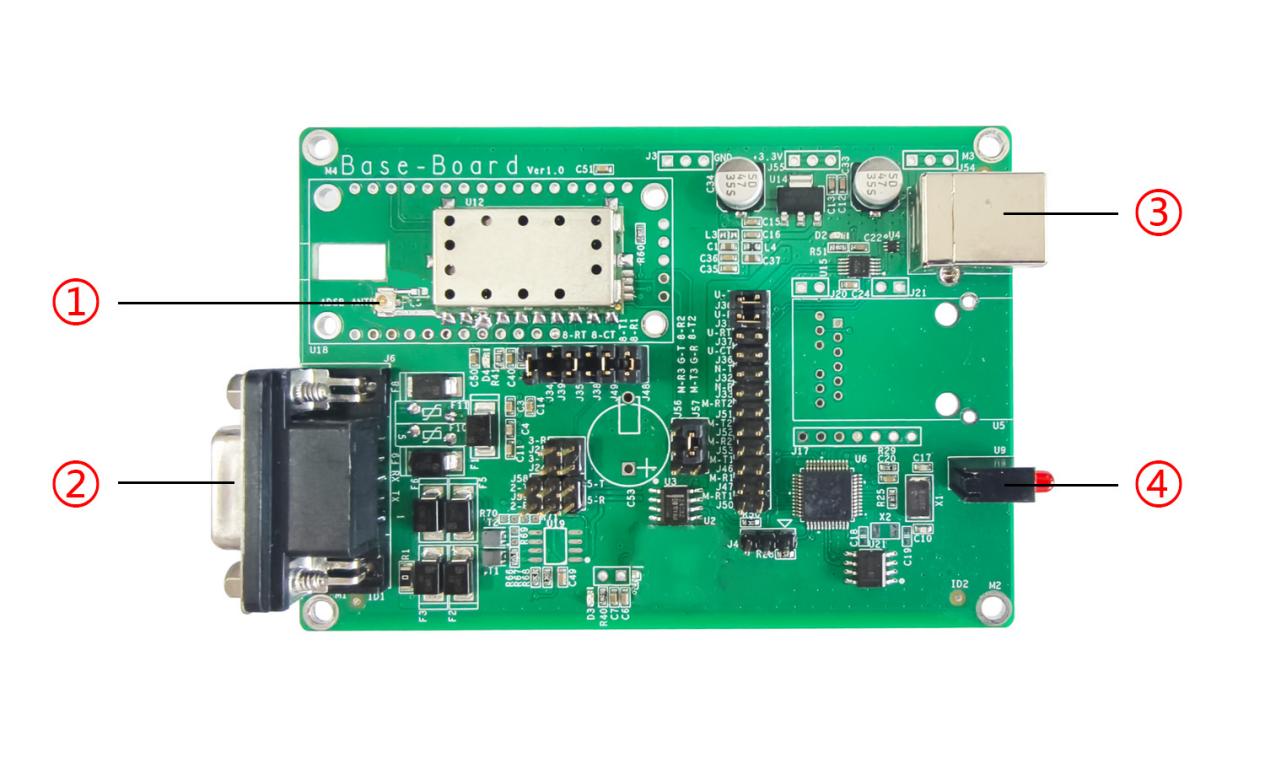

Main Unit Interfaces:

No.

Interface Name

Description

1

ADSB-ANT

ADS-B antenna interface, IPEX

2

DB9

Data Interface 2, DB9 Connector

3

USB

Data Interface 1, Type-B Connector

4

Indicator Light

Power Indicator (Red), Data Indicator (Green)


Dimensions
ADS-B Receiver Module ADSB-MU2

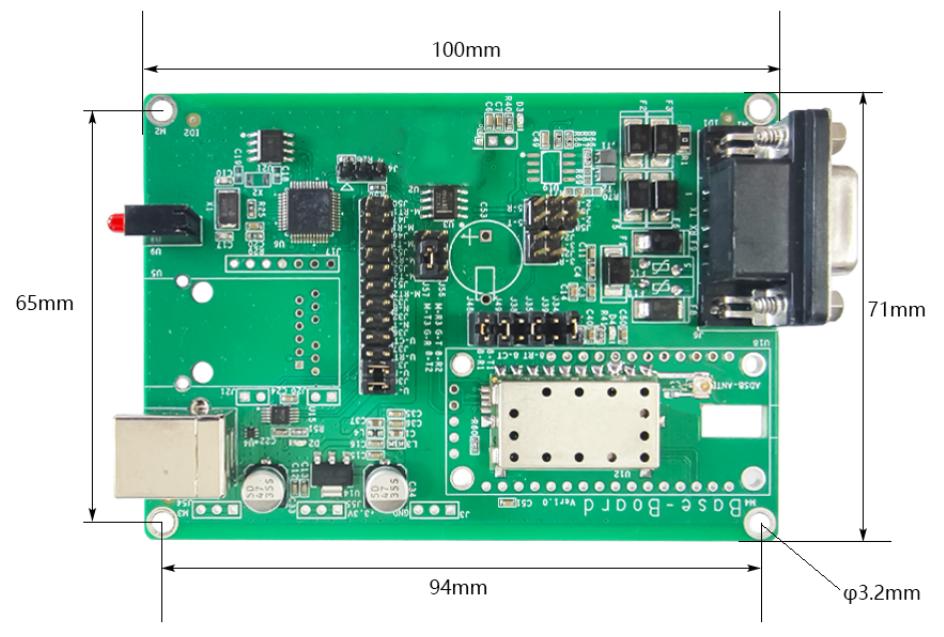

· Module Dimensions: 100 mm × 71 mm

· Mounting Hole Spacing: 94 mm × 65 mm

· Mounting Hole Diameter: 3.2 mm




ADS-B Receiver Module ADSB-MU2 User Manual
