Introduction |
|---|
|

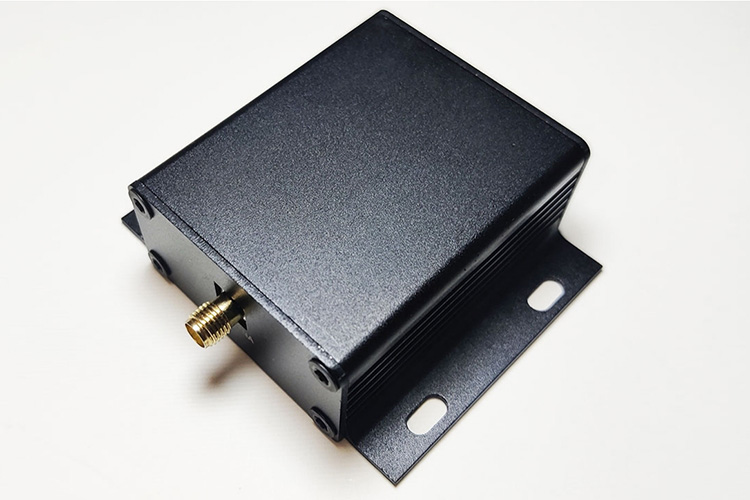

The AIS-UV06 is a compact and lightweight AIS receiver specifically designed for integration with small and medium-sized UAVs. It is a dual-channel AIS receiver with a built-in low-noise amplifier (LNA), offering features such as small size, light weight, and low power consumption—making it ideal for UAV applications. The AIS-UV06 is equipped with a 6-pin JST-GH output interface, with pin assignments compatible with the Pixhawk telemetry port, enabling easy connection to UAV flight controllers. |
|
Package List：
|
Features |
|---|
|
· Compact size and lightweight, suitable for UAV integration · Outputs standard AIVDM message format · Supports AIS message types 1-27 · Supports dual AIS channels · Highly configurable for various application scenarios · Optional output of AIS signal strength · Optional reception of “Long-Range AIS” signals · Integrated 6-pin JST-GH interface for flight controller connection |
Specifications |
|||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|||||||||||||||||||||||||||||||||||||
Interface |
||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
||||||||||||||||||||||
|

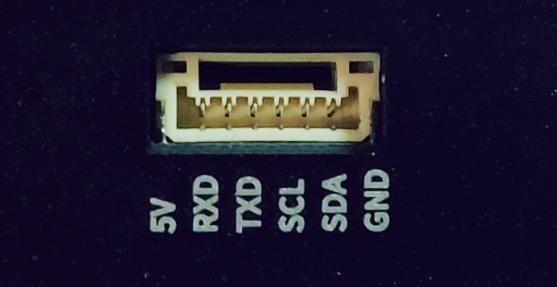

Pin Description：
|
||||||||||||||||||||||
SERIAL Configuration：
|
No. |
Name |
Configuration |
|
1 |
Baud Rate |
38400 |
|
2 |
Data Bits |
8 |
|
3 |
Parity |
none |
|
4 |
Stop Bits |
1 |
UAV AIS Receiver AIS-UV06 User Manual
