Introduction
|
|

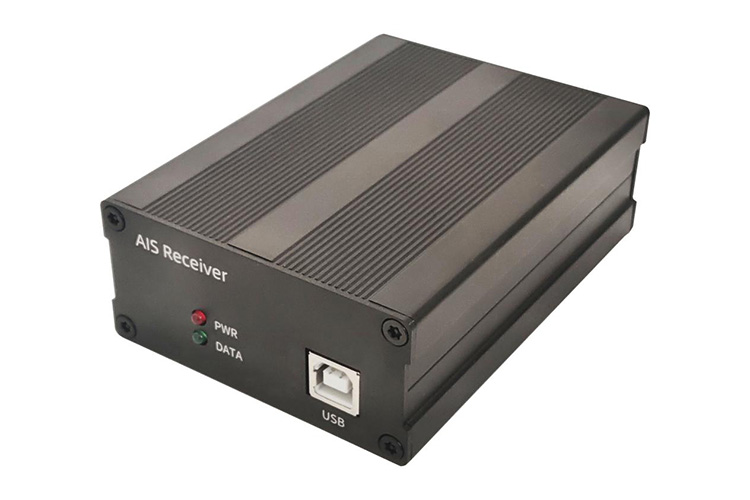

The AIS-RUS01 is a portable and professional small-scale AIS receiver. It is a dual-channel AIS receiver integrated with a low noise amplifier (LNA), featuring compact size, lightweight, and low power consumption. The device can output data simultaneously via USB and serial port. The serial interface supports the RS232 protocol by default, with optional RS485 support available (please inform us of the selected option before shipment). RS422 or TTL customization is also available.
|
|
Package List：
|
No.
|
Name
|
Quantity
|
Remarks
|
|
1
|
AIS-RUS01
|
1 unit
|
Standard
|
|
2
|
USB-TypeB Cable
|
1 piece
|
Standard
|
|
3
|
Small AIS Antenna
|
1 piece
|
Standard
|
|
4
|
DB9 Male Connector
|
1 piece
|
Standard
|
|
5
|
Professional AIS Antenna
|
1 piece
|
Optional
|
|
6
|
Antenna Cable (5m)
|
1 piece
|
Optional
|
|
Features
|
|
· Compact size, light weight, low power consumption
· Outputs standard AIVDM message format
· Supports AIS message types 1-27
· Supports dual AIS channels
· Highly configurable for various application scenarios
· Optional output of AIS signal strength
· Optional reception of “Long-Range AIS” signals
· Supports USB/serial port output
|
Specifications
|
|
No.
|
Specifications
|
|
1
|
Power Supply
|
5V 2A (USB-powered)
Other power supply options can be customized according to requirements
|
|
2
|
Power Consumption
|
70mA
|
|
3
|
Receiving Frequency
|
161.975 MHz, 162.025 MHz
156.775 MHz(Optional)
156.825 MHz(Optional)
|
|
4
|
Data Format
|
AIVDM
|
|
5
|
AIS Channels
|
2
|
|
6
|
Sensitivity
|
-115dBm
|
|
7
|
Bandpass Filter Range
|
156.3~162.025MHz
|
|
8
|
Input Impedance
|
50Ω
|
|
9
|
Output interface 1
|
USB
|
|
10
|
Output interface 2
|
Default RS232
Optional RS485
RS422/TTL customization available
|
|
11
|
Dimensions
|
100x75.8x34.8 mm
(not including antenna connector)
|
|
12
|
Weight
|
180g
|
|
13
|
Antenna Connector
|
SMA
|
|
Interface
|
|
|
|
Interface：
|
No.
|
Interface Name
|
Function
|
|
1
|
USB
|
Power supply for the main unit, data transmission
|
|
2
|

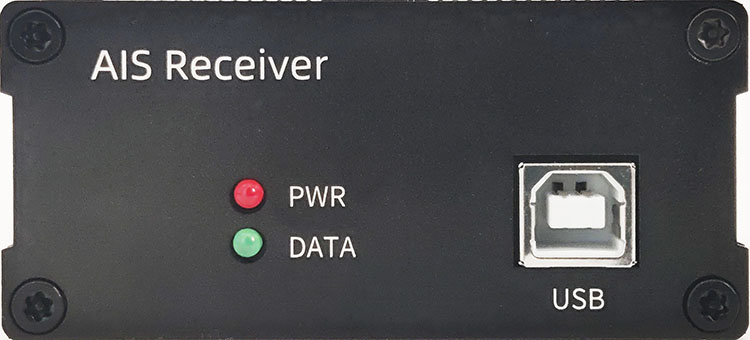

PWR
|
Power indicator light for the main unit
|
|
3
|
DATA
|
Data transmission indicator light
|
|
4
|

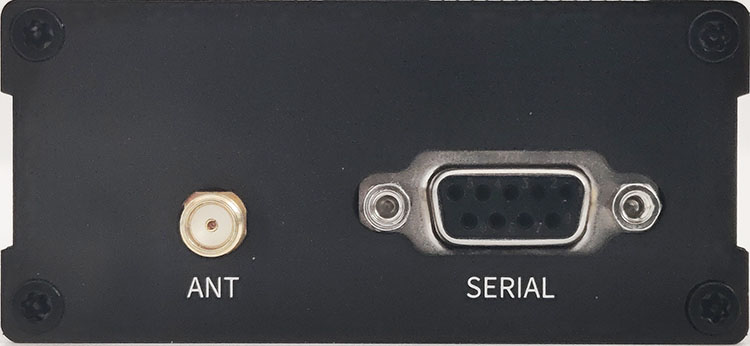

ANT
|
Antenna interface
|
|
5
|
SERIAL
|
Serial port interface, default RS232; for other protocols, please contact us for configuration
|
|
|
|
|
|
