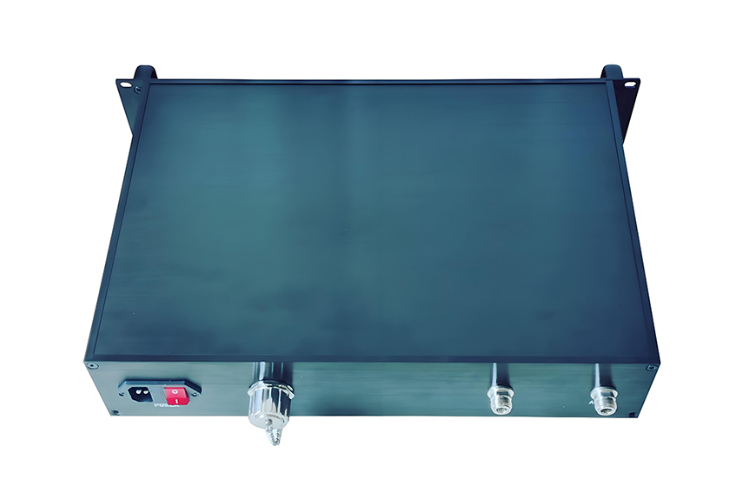

19 inch rack mountable AIS receiver station AIS-OS60
Pricing available upon request.
- By AvionixTech
- 2026-06-10
- Word Count:432
Introduction
|
|
AIS-60S is a domestically developed, rack-mounted, high-performance, feature-rich, and highly integrated engineering-grade AIS shore-based receiving station system.
It is specifically designed for installation in standard 19-inch 2U rack slots, making it particularly suitable for AIS ground stations requiring 19-inch plug-and-play compatibility.
Featuring a rugged industrial-grade design, advanced AIS decoder, and high-performance data processor, the AIS-60S can reliably and efficiently receive and decode AIS data, while also supporting the domestic BeiDou navigation system.
|
|
Package List：
|
No.
|
Name
|
Quantity
|
Remarks
|
|
1
|
AIS-OS60
|
1 unit
|
Included
|
|
2
|
Power adapter
|
1 piece
|
Included
|
|
3
|
AIS antenna&clamp
|
1 set
|
Included
|
|
4
|
AIS antenna cable
|
1 piece (10 meters)
|
Included
|
|
5
|
GPS antenna&clamp
|
1 set
|
Included
|
|
6
|
GPS antenna cable
|
1 piece (10 meters)
|
Included
|
|
7
|
Surge Protector
|
2 unit
|
Included
|
|
Features
|
|
· The AIS-60S can output AIS data via Ethernet and provides interfaces that are highly suitable for secondary development.
· It can output both raw AIS messages and decoded plain-text data, eliminating the need for complex decoding procedures.
· The IP address can be configured directly, allowing the AIS-60S to be connected to the customer’s network without requiring a router (a router may also be used depending on site requirements).
· Supports both static IP and DHCP IP address acquisition modes.
· Capable of outputting GPS time stamps, with a minimum time resolution better than 1 ns.
· Optional signal strength output available.
· Supports customer OEM customization (optional).
· Supports ACARS / ADS-B / AIS integration (optional).
|
Specifications
|
|
No.
|
Specifications
|
|
1
|
Power Supply
|
220V AC
|
|
2
|
Power Consumption
|
5 W
|
|
3
|
Receiving Frequency
|
161.975 MHz, 162.025 MHz
156.775 MHz(Optional)
156.825 MHz(Optional)
|
|
4
|
Sensitivity
|
≤ -113 dBm
|
|
5
|
Receiving Dynamic Range
|
-113 dBm to +10 dBm
|
|
6
|
Supported AIS Message Types
|
1-27
|
|
7
|
AIS Target Processing Capacity
|
≥ 600 targets
|
|
8
|
Processing Capability
|
> 2500 packets/s
|
|
12
|
Data Format
|
AIS Raw Messages / JSON Plain Text
|
|
13
|
Band-Pass Filter
|
156.3 ~ 162.025 MHz
|
|
14
|
Input Impedance
|
50 Ω
|
|
15
|
Data Interface
|
RJ45 Ethernet Port
|
|
16
|
Network Connection Mode
|
Static IP or DHCP
|
|
17
|
Network Protocol
|
TCP / UDP
|
|
18
|
ADS-B Antenna Interface
|
N Female
|
|
19
|
GPS Antenna Interface
|
N Female
|
|
20
|
Dimensions
|
43 × 30 × 8.9 cm (excluding antenna connectors and handles), 2U
|
|
21
|
Operating Temperature
|
-20°C ~ +60°C
|
|
22
|
Storage Temperature
|
-20°C ~ +70°C
|
|
23
|
Storage Humidity
|
10% ~ 80%
|
|
Interface
|
|

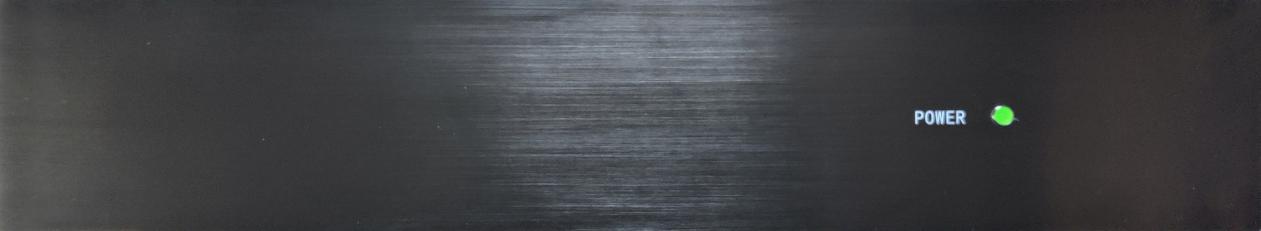

Front Panel: Power Indicator Light

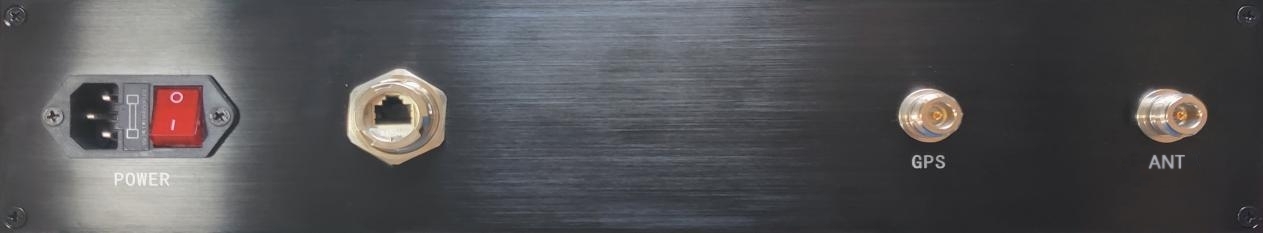

Rear Panel: From left to right – Power Socket, Network Port, GNSS Antenna Port, AIS Antenna Port
|
| |
|
|
|
|
