19 inch ADS-B Ground Station ADSB-GS1090


ADS-B (Automatic Dependent Surveillance - Broadcast) is a system or a technique. ADS-B uses airborne GPS and several other equipment to obtain the aircraft own position and other information, then uses communication equipment onboard to transmit the aircraft own position and other information. ADS-B ground stations and other aircrafts around can use communication equipment to get this information, so to monitor the aircraft, or to say, “see” the aircraft.

The main ground surveillance technique used to be radar. Radar is expensive, a lot of work to install and maintain. While ADS-B ground stations are cheap, easy to install and maintain. A cheaper and easier way for ground surveillance solution, even possible to replace radar in the future.

Why is it called ADS-B?
A:Automatic,all ADS-B information is transmitted automatically, no need of any person operation or trigger signal.
D:Dependent,all ADS-B information is coming from airborne equipments, not like radar information is calculated by radar.
S:Surveillance,ADS-B is used for surveillance and belongs to the “S” part of CNS/ATM
B:Broadcast,ADS-B information is broadcasted. Any entity with the right equipment around can receive ADS-B signal.

What information is included in ADS-B?
Latitude, longitude, pressure altitude, GPS height, speed, heading, flight ID and a lot of other information.

ADSB-GS1090 is a high performance and easy to use ADS-B ground station, with standard 19 inch 2U inserts for existing or new racks.

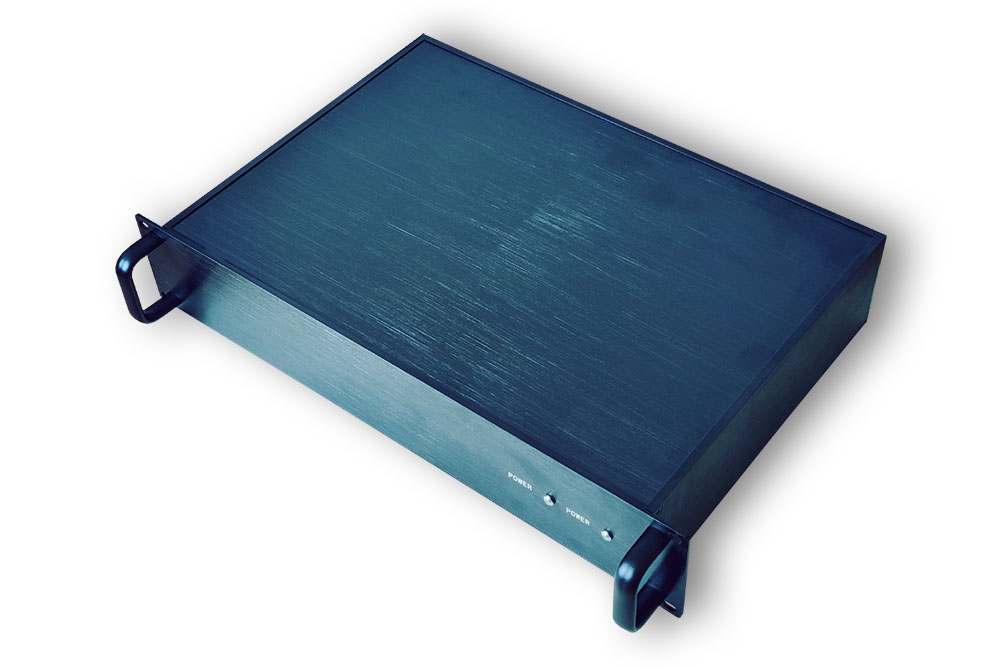

19” ADS-B Ground Station ADSB-GS1090

19 inch ADS-B Ground Station  ADSB-GS1090

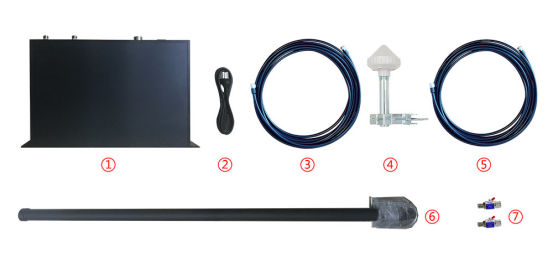

ADSB-GS1090 includes:

①、ADSB-GS1090 unit *1
②、Power *1
③、GPS antenna cable 10 meters *1 (please indicate if you need longer cable)
④、GPS antenna *1
⑤、GPS antenna clamp *1
⑥、ADS-B antenna cable 10 meters *1 (please indicate if you need longer cable)
⑦、ADS-B antenna *1
⑧、ADS-B antenna clamp *1
⑨、ADS-B antenna *1

19 inch ADS-B Ground Station ADSB-GS1090



Data Formats
1. ADSB-GS1090 can output ADS-B messages via network cables in different data format. Including CSV plaintext (decoded data, you can easily get longitude, latitude, altitude, speed, flight ID… without complicated decoding by yourself), Asterix Cat021, json (also decoded data), DF17/18 raw messages and AVR.
2. ADSB-GS1090 can also receive and output Mode-S messages and Mode A/C messages.
3. ADSB-GS1090 can output data with GPS timestamp.

Functions for your convenience

1. ADSB-GS1090 can be connected via network cables.
2. ADSB-GS1090 supports static IP address and DHCP.
3. ADSB-GS1090 IP address can be configured to connect with computer without routers. Of course ADSB-GS1090 can also be configured to connect with computer with routers, all up to you.
4. One ADSB-GS1090 can send data to multi clients.
5. ADSB-GS1090 is standard 19″ 2U inserts for existing or new racks.
6. Work with adsbscope.






better than -93dbm


>350 km

Power Supply


Physical Size

43*30*8.9 cm (not include antenna connectors and handle)

Antenna Connector




1. Surge Protector.
2. V4A stainless special steel ADS-B antenna to prevent salt erosion for off-shore use.
3. Dual unit for high reliability.
4. ATC display software.
5. OEM/Customization. All our products can be supplied fully customized with your brand and logo. We can even do customized form factors, enclosures and packages on your requirement. This OEM/Customization service enables you to have your own unique product in minimal time with no risk.
6. IQ data output and storage. We can output and storage IQ data for your analysis. Please don’t hesitate to contact us providing your specific requirement.
7. ADS-B, ACARS and AIS, three A receiver integration, is usually called 3A receiver. We can do this.
8. You’re welcome to provide any of your requirements, we’d be glad to work with you!


Special use case

1. Off-shore use, with optional V4A stainless special steel ADS-B antenna.
2. On ship, with optional V4A stainless special steel ADS-B antenna.
3. Areas that have a lot of thunders, with surge protectors.



· Omnidirectional

· Frequency: 1060-1120MHz

· Bandwidth: 60MHz

· Gain: 6 dBi

· VSWR: <1.5

· Impedance: 50 ohms

· Polarization: Vertical

· Length: 60 cm

· Weight (Without mast clamp): 360 g

· Weight (With mast clamp): 510 g

· Connector: N Female

· Operating Temperature: -40 to +85 degrees

· Rated Wind Velocity: 60 m/s


19 inch ADS-B Ground Station ADSB-GS1090 User Manual
