Outdoor ADS-B Station ADSB-RE1090P

Outdoor ADS-B Station ADSB-RE1090P

ADS-B (Automatic Dependent Surveillance - Broadcast) is a system or a technique. ADS-B uses airborne GPS and several other equipment to obtain the aircraft own position and other information, then uses communication equipment onboard to transmit the aircraft own position and other information. ADS-B stations and other aircrafts around can use communication equipment to get this information, so to monitor the aircraft, or to say, “see” the aircraft.

The main ground surveillance technique used to be radar. Radar is expensive, a lot of work to install and maintain. While ADS-B stations are cheap, easy to install and maintain. A cheaper and easier way for ground surveillance solution, even possible to replace radar in the future.

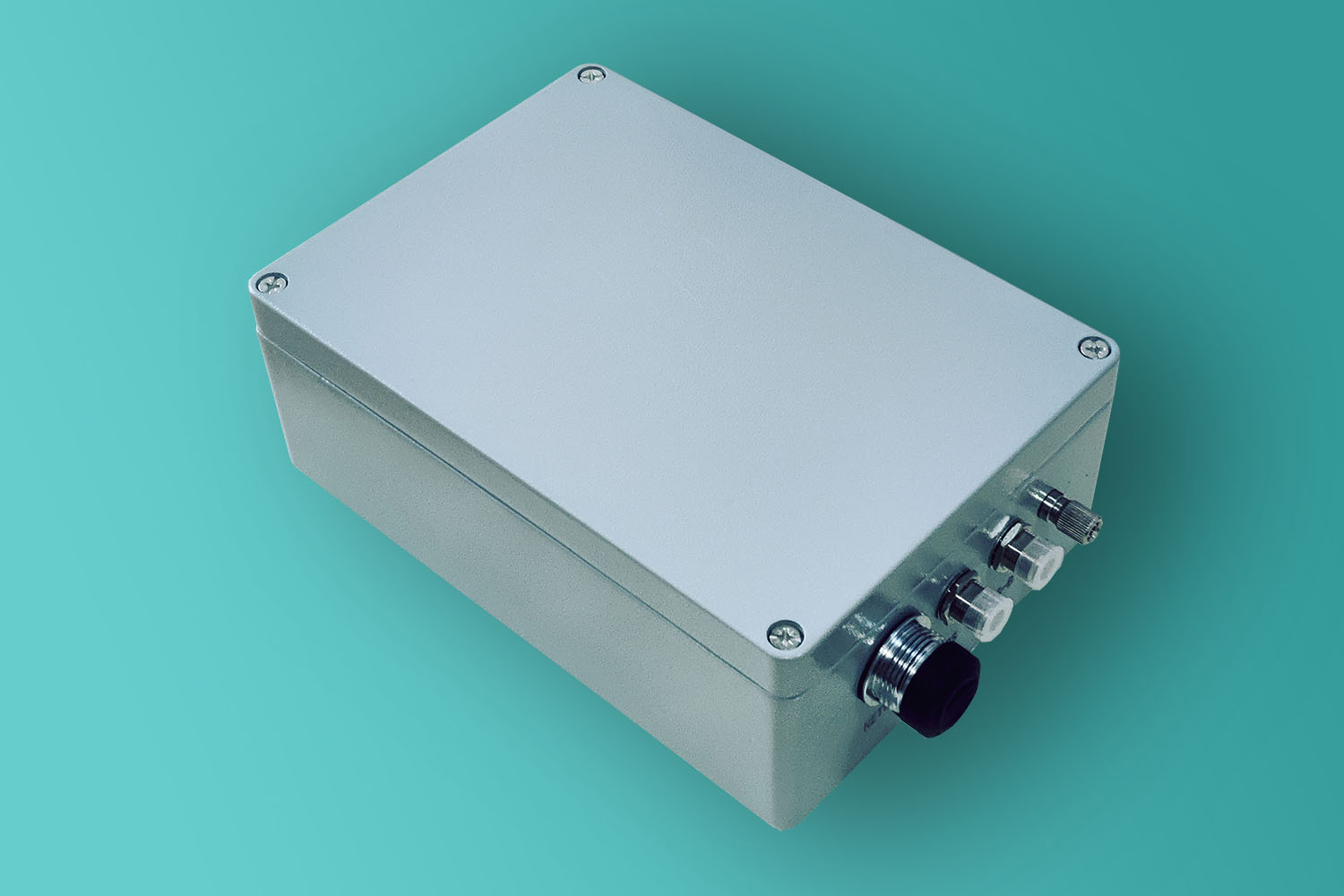

ADSB-RE1090P is a high performance and easy to use ADS-B station.  ADSB-RE1090P is the outdoor version of ADSB-RE1090.


 ADSB-RE1090P includes:

① ADSB-RE1090 unit *1

② Waterproof RJ45 connector *1

③ PoE power *1

④ GPS antenna with clamp *1

⑤ GPS antenna cable 2 meters *1 (please indicate if you need longer cable)

⑥ ADS-B antenna cable 10 meters *1 (please indicate if you need longer cable)

⑦ ADS-B antenna *1 & ADS-B antenna clamp *2

⑧ ADSB-RE1090P unit clamp *2

Outdoor ADS-B Station ADSB-RE1090P



Data Formats
1. ADSB-RE1090P can output ADS-B messages via network cables in different data formats. Including CSV plaintext (decoded data, you can easily get longitude, latitude, altitude, speed, flight ID… without complicated decoding by yourself), Asterix Cat021, json (also decoded data), DF17/18 raw messages and AVR.
2. ADSB-RE1090 can also receive and output Mode-S messages and Mode A/C messages.
3. ADSB-RE1090P can output data with GPS timestamp.

Functions for your convenience
1. ADSB-RE1090P can be connected via network cables.
2. ADSB-RE1090P supports static IP address and DHCP.
3. ADSB-RE1090P IP address can be configured to connect with computer without routers. Of course ADSB-RE1090 can also be configured to connect with computer with routers, all up to you.
4. One ADSB-RE1090P can send data to multi clients.
5. Work with adsbscope display software.
6. Weather resistant with IP67 design.
Have surge protector and grounding stud, easy to ground when installed on site to protect ADSB-RE1090P from lightning.






better than -93dbm


>350 km

Power Supply


Physical Size

34*23.5*9.5 cm (not include antenna connectors)

Antenna Connector




1. V4A stainless special steel ADS-B antenna to prevent salt erosion for off-shore use.
2. Dual unit for high reliability.
3. ATC display software.
4. ATC display software.
5. OEM/Customization. All our products can be supplied fully customized with your brand and logo. We can even do customized form factors, enclosures and packages on your requirement. This OEM/Customization service enables you to have your own unique product in minimal time with no risk.
6. IQ data output and storage. We can output and storage IQ data for your analysis. Please don’t hesitate to contact us providing your specific requirement.
7. ADS-B, ACARS and AIS, three A receiver integration, is usually called 3A receiver. We can do this.
8. Indoor version. We also provide ADSB-REP1090, which is the indoor version of ADSB-RE1090P for indoor use. Please refer to ADSB-REP1090 manual.
9. You’re welcome to provide any of your requirements, we’d be glad to work with you!


Special use case

1. Outdoor use, with IP67 design.
2. Off-shore use, with optional V4A stainless special steel ADS-B antenna.
3. On ship, with optional V4A stainless special steel ADS-B antenna.
4. Areas that have a lot of thunders, with surge protectors.



· Omnidirectional

· Frequency: 1060-1120MHz

· Bandwidth: 60MHz

· Gain: 6 dBi

· VSWR: <1.5

· Impedance: 50 ohms

· Polarization: Vertical

· Length: 60 cm

· Weight (Without mast clamp): 360 g

· Weight (With mast clamp): 510 g

· Connector: N Female

· Operating Temperature: -40 to +85 degrees

· Rated Wind Velocity: 60 m/s


Outdoor ADS-B Station ADSB-RE1090P User Manual
