Simplified Serial Port ADS-B Ground Receiver ADSB-SS01

Introduction
ADSB-SS01 is a simple ADS-B ground receiver engineered for precision surveillance applications. Featuring an onboard ADS-B signal processing module, this compact device delivers real-time ADS-B messages with full compliance to DO-260B/DO-260C standards. ADSB-SS01 can output raw ADS-B messages, including DF17 and DF18, via USB or serial port with protocol support for RS232 and RS485. ADSB-SS01 provides ADS-B data reception, processing, and display services, and can be applied in fields such as civil aviation flight tracking, airport management, general aviation aircrafts surveillance, Detect-and-Avoid (DAA) subsystem, ADS-B IN capability for UAS situational awareness, radar calibration, academic research and education.

Introduction

ADSB-SS01 is a simple ADS-B ground receiver engineered for precision surveillance applications. Featuring an onboard ADS-B signal processing module, this compact device delivers real-time ADS-B messages with full compliance to DO-260B/DO-260C standards. ADSB-SS01 can output raw ADS-B messages, including DF17 and DF18, via USB or serial port with protocol support for RS232 and RS485.

ADSB-SS01 provides ADS-B data reception, processing, and display services, and can be applied in fields such as civil aviation flight tracking, airport management, general aviation aircrafts surveillance, Detect-and-Avoid (DAA) subsystem, ADS-B IN capability for UAS situational awareness, radar calibration, academic research and education.

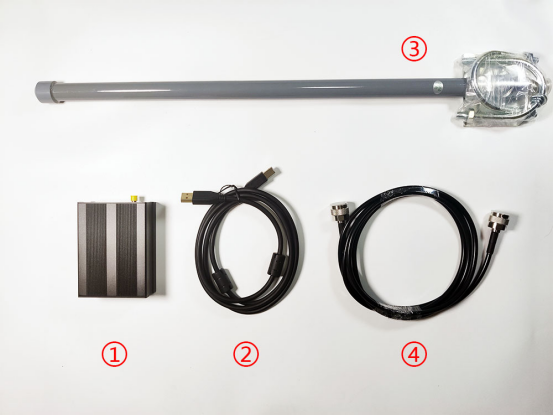

Package List：

No.	Item	Quantity	Remarks
1	ADSB-SS01	1 unit	Included
2	Type-B USB Data Cable	1 piece	Included
3	ADS-B Antenna and Bracket	1 set	Included
4	ADS-B Antenna Cable	1 piece (10 meters)	Included

Simplified Serial Port ADS-B Ground Receiver ADSB-SS01

Specifications

Power Supply	5V 2A
Power Consumption	0.5W
Receiving Frequency	1090MHz
Sensitivity	≤ -90dBm
Receiving Range	> 250km(no interference, unobstructed)
Data Format	ADS-B raw messages
Data Interface	Type-B USB & DB9 female
Serial Protocol	RS232 / RS485
ADS-B Antenna Interface	SMA female
Dimensions	1007635mm
Weight	190g

Interface Description

Interface：

No.	Interface Name	Interface Function
1	PWR	Power supply indicator
2	DATA	Data reception indicator
3	USB	Data interface 1, Type-B connector (default output interface)
4	ANT	ADS-B antenna interface, SMA female
5	SERIAL	Data interface 2, DB9 connector

Note: The default data output interface is USB. For serial port output, please contact us.

USB / SERIAL Configuration:

No.	Name	Configuration
1	Baud Rate	921600
2	Data Bits	8
3	Parity	none
4	Stop Bits	1

Special use cases
Special use cases often require specific features or accessories that not every standard ADS-B ground station on market can accommodate. Besides standard ADS-B ground station use cases, our ADS-B ground station solution can be customized with optional accessories to meet below unique applications effectively.
1. Off-shore use, with optional seawater resistant ADS-B Antenna. 2. On ship, with optional seawater resistant ADS-B Antenna. 3. Areas that have a lot of thunders, with optional ADS-B antenna, GPS antenna and network surge protectors.
