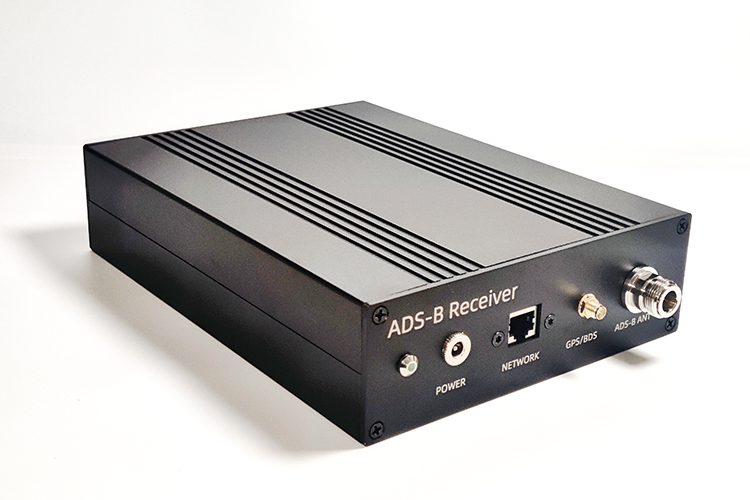

Industrial-grade ADS-B Ground Receiver ADSB-RE1090L

Introduction
The ADSB-RE1090L is an industrial-grade ADS-B ground receiver designed to provide stable ADS-B data services for high-reliability scenarios, especially for customers looking for an ADS-B ground receiver for long range coverage. Equipped with a high-performance receiving and processing module, it outputs ADS-B raw messages, CSV plain-text data, and JSON track data via an RJ45 Ethernet port. It is suitable for complex environments in civil aviation, general aviation, and low-altitude airspace supervision. With the ADSB-RE1090L, customers gain access to valuable, customizable tracking capabilities tailored to a wide range of operational needs, including: 1.Enhanced situational awareness across airfield, apron, and terminal areas. 2.Airport surface movement monitoring and vehicle tracking. 3.Support for low-altitude operations such as helicopter missions, flight school tracking, wind farm monitoring, and offshore/onshore oil and gas platform oversight. 4.UAV and drone tracking. 5.Monitoring of aircraft noise in airport vicinities. 6.Calibration of radar and navigational aid (navaid) systems. 7.Search and rescue operations in mountainous regions and valley surveillance. 8.Applications in defense and electronic intelligence. 9.Coordination of integrated vessel and helicopter operations. Fully compliant with Mode-S and ADS-B standards, including ICAO Annex 10, ICAO Doc 9871, RTCA DO-260/A/B and ED-102/A/B, the ADSB-RE1090L ensures regulatory adherence and seamless compatibility with industry requirements. Operating on the 1090 MHz frequency and supporting Mode S Extended Squitter (1090ES), the ADSB-RE1090L can also support Multilateration (MLAT) capabilities for high-precision aircraft tracking and surveillance. In addition, it’s light, small, so can work as a portable ADS-B ground receiver.

Introduction

The ADSB-RE1090L is an industrial-grade ADS-B ground receiver designed to provide stable ADS-B data services for high-reliability scenarios, especially for customers looking for an ADS-B ground receiver for long range coverage. Equipped with a high-performance receiving and processing module, it outputs ADS-B raw messages, CSV plain-text data, and JSON track data via an RJ45 Ethernet port. It is suitable for complex environments in civil aviation, general aviation, and low-altitude airspace supervision.

With the ADSB-RE1090L, customers gain access to valuable, customizable tracking capabilities tailored to a wide range of operational needs, including: 1.Enhanced situational awareness across airfield, apron, and terminal areas. 2.Airport surface movement monitoring and vehicle tracking. 3.Support for low-altitude operations such as helicopter missions, flight school tracking, wind farm monitoring, and offshore/onshore oil and gas platform oversight. 4.UAV and drone tracking. 5.Monitoring of aircraft noise in airport vicinities. 6.Calibration of radar and navigational aid (navaid) systems. 7.Search and rescue operations in mountainous regions and valley surveillance. 8.Applications in defense and electronic intelligence. 9.Coordination of integrated vessel and helicopter operations.

Fully compliant with Mode-S and ADS-B standards, including ICAO Annex 10, ICAO Doc 9871, RTCA DO-260/A/B and ED-102/A/B, the ADSB-RE1090L ensures regulatory adherence and seamless compatibility with industry requirements.

Operating on the 1090 MHz frequency and supporting Mode S Extended Squitter (1090ES), the ADSB-RE1090L can also support Multilateration (MLAT) capabilities for high-precision aircraft tracking and surveillance. In addition, it’s light, small, so can work as a portable ADS-B ground receiver.

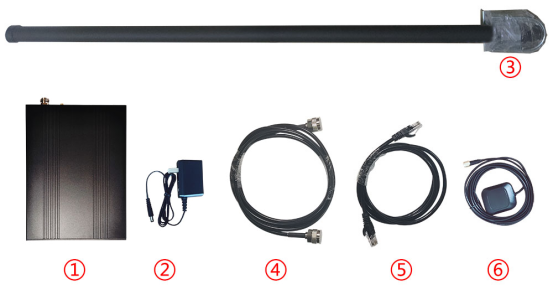

ADSB-RE1090L package includes：

① ADSB-RE1090L unit *1

② Power Cable piece*1

③ ADS-B Antenna and Bracket set*1

④ ADS-B Antenna Cable piece*1(10 meters)

⑤ Network Cable piece*1

GPS/BDS Antenna set*1(includes 3-meter cable)

Industrial-grade ADS-B Ground Receiver ADSB-RE1090L

Functions
1. ADSB-RE1090L supports multiple output message formats: CSV plain text (decoded data, you can easily get longitude, latitude, altitude, speed, flight ID…), JSON (also decoded data), and DF17/DF18 raw messages. 2. ADSB-RE1090L can output data with GPS timestamp. 3. ADSB-RE1090L can be connected via network cables. 4. ADSB-RE1090L IP address can be configured for direct connection with a computer without the need for routers. However, ADSB-RE1090L can also be configured to connect with a computer via routers, offering flexibility based on your setup preferences. 5. ADSB-RE1090L supports static IP address and DHCP. 6. A single ADSB-RE1090L unit can send ADS-B data to multiple clients simultaneously, enabling efficient data distribution across multiple devices or systems. 7. ADSB-RE1090L is a portable ADS-B receiver. 8. Optional: Data transmission via 4G/5G module. 9. Optional: Output of ADS-B signal strength in dBm, which can be used for measuring propagation environment.

Functions

1. ADSB-RE1090L supports multiple output message formats: CSV plain text (decoded data, you can easily get longitude, latitude, altitude, speed, flight ID…), JSON (also decoded data), and DF17/DF18 raw messages.
2. ADSB-RE1090L can output data with GPS timestamp.
3. ADSB-RE1090L can be connected via network cables.
4. ADSB-RE1090L IP address can be configured for direct connection with a computer without the need for routers. However, ADSB-RE1090L can also be configured to connect with a computer via routers, offering flexibility based on your setup preferences.
5. ADSB-RE1090L supports static IP address and DHCP.
6. A single ADSB-RE1090L unit can send ADS-B data to multiple clients simultaneously, enabling efficient data distribution across multiple devices or systems.
7. ADSB-RE1090L is a portable ADS-B receiver.
8. Optional: Data transmission via 4G/5G module.
9. Optional: Output of ADS-B signal strength in dBm, which can be used for measuring propagation environment.

Specifications
The ADSB-RE1090L ADS-B receiver system is capable of processing various types of ADS-B messages, including airborne and surface messages from civil aviation aircraft, general aviation aircraft, UAVs, as well as airport vehicle messages. This enables comprehensive surveillance of civil aviation aircraft, general aviation aircraft, UAVs, and airport vehicles equipped with ADS-B devices.
Power Supply	DC12V 2A
Power Consumption	4W
Receiving Frequency	1090MHz
Sensitivity	≤ -97dBm
Receiving Range	> 400km(no interference, unobstructed)
Dynamic Range	≥ 80 dB
Update Rate	≥ 1 Hz
Target Capacity	> 700 targets
Processing Capability	> 3,500 /s
Data Format	ADS-B raw messages DF17/DF18 CSV plain text \ JSON plain text JSON plain text track data
Data Interface	RJ45 network port
Network Connection	Static IP or DHCP
Network Protocol	TCP/UDP
ADS-B Antenna Interface	N female
GPS/BDS Antenna Interface	SMA female
Dimensions	22016072mm (main body)
Weight	1260g
Operating Temperature	-20℃ ~ +60℃
Storage Temperature	-20℃ ~ +70℃
Storage Humidity	10% ~ 80%

Interface Description

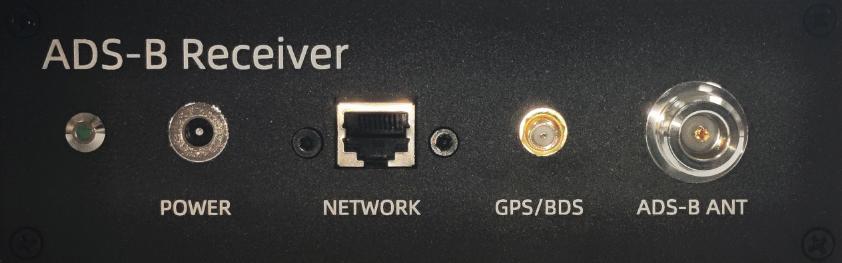

POWER	Power supply interface for main unit, DC 12V 2A
NETWORK	Data Interface, RJ45
GPS/BDS	GPS/BDS antenna interface, SMA female
ADS-B ANT	ADS-B antenna interface, N female

Special use cases
Special use cases often require specific features or accessories that not every standard ADS-B ground station on market can accommodate. Besides standard ADS-B ground station use cases, our ADS-B ground station solution can be customized with optional accessories to meet below unique applications effectively.
1. Off-shore use, with optional seawater resistant ADS-B Antenna. 2. On ship, with optional seawater resistant ADS-B Antenna. 3. Areas that have a lot of thunders, with optional ADS-B antenna, GPS antenna and network surge protectors.
